Cards and functions

Products

Mode and function cards that allow you to update and adapt your lock system over time.

Service CardThe yellow Service Card is one of our main system cards. The Service Card acts as the master key and is linked to the lock during installation. Available for both EM and Mifare, Can be ordered with or without a unique ID.

Programming CardThe green Programming Card is one of our main system cards. The Programming card is used to add or remove users linked to the lock. It is also used to change the lock’s modes or functions. Available for both EM and Mifare. Can be ordered with or without a unique ID.

Mode 1Mode 1 is our standard mode. Flexlock is always delivered in this mode unless otherwise requested. In this mode, the lock is open by default. It is intended for private storage for a specific user or group. It supports 1–200 unique users with Mifare and 1–45 unique users with EM. If you want to change the lock to another mode, you will need to add a mode card with the desired function.

Mode 2Mode 2 with Auto Lock function. The lock automatically switches to the locked position 4 seconds after it has been opened. This mode is intended for private storage for a specific user. It supports 1–200 unique users with Mifare and 1–45 unique users with EM.

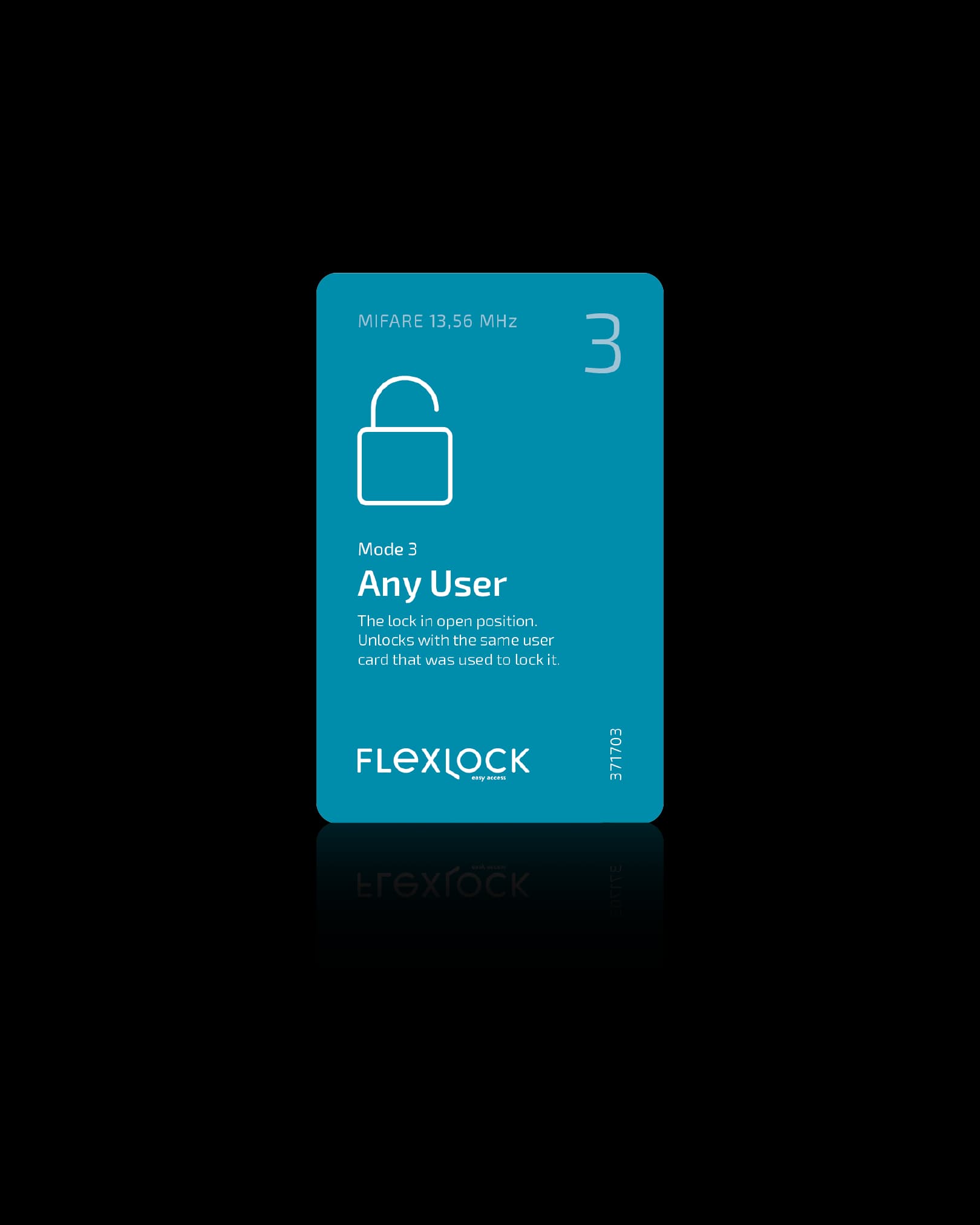

Mode 3Mode 3 – Any user. This function is intended for public storage where the lock is in the open position by default. The storage can be used by anyone who has a temporary need for it. The user card that is presented first becomes the owner of the storage until the same card is used again to unlock it. There is no time limit. Available for both EM and Mifare.

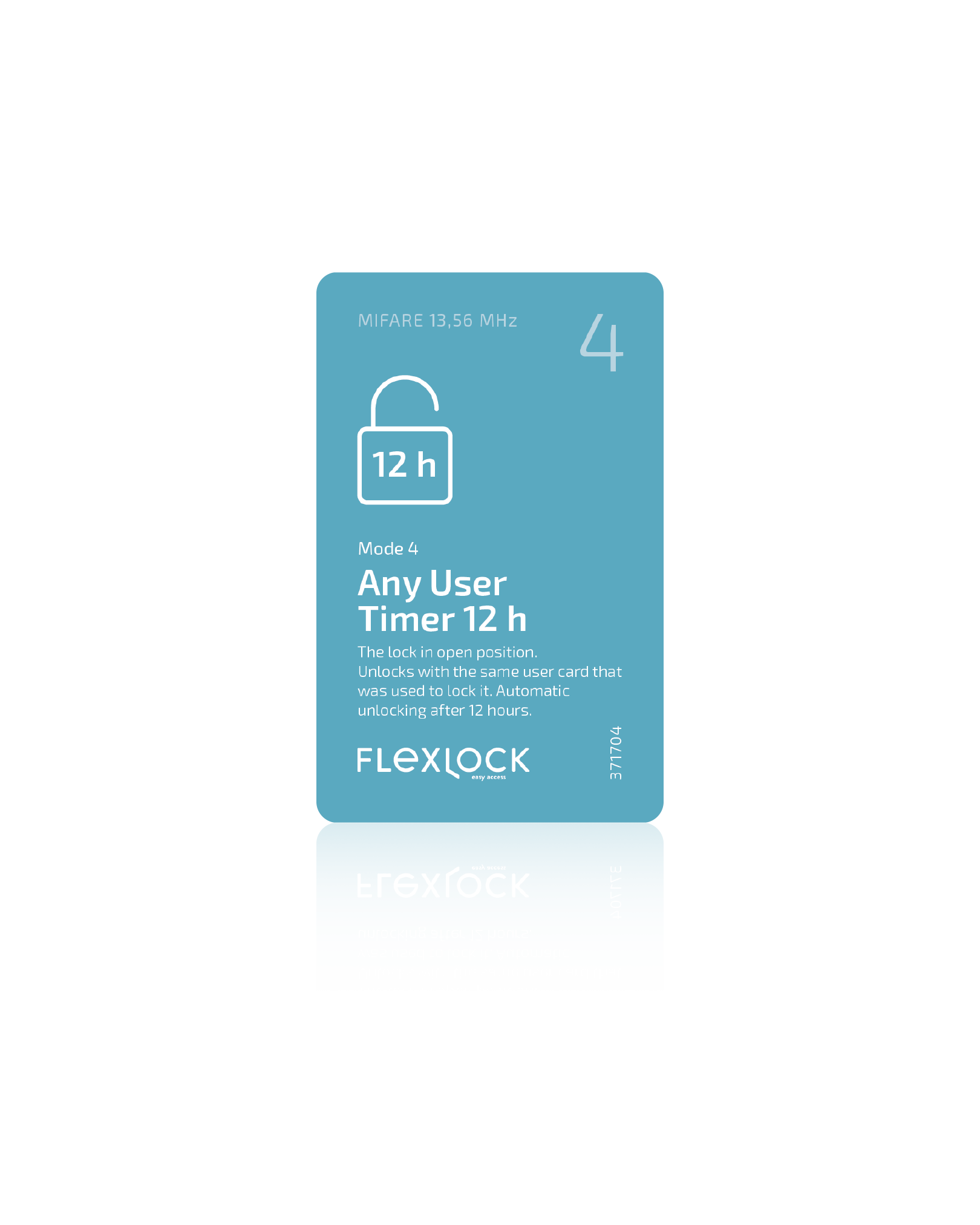

Mode 4Mode 4 - Any user Timer 12 h. This function is intended for public storage where the lock is in the open position by default. The storage can be used by anyone who has a temporary need for it. The user card that is presented first becomes the owner of the storage until the same card is used again to unlock it. The lock has a time limit and will automatically unlock after 12 hours.. Available for both EM and Mifare.

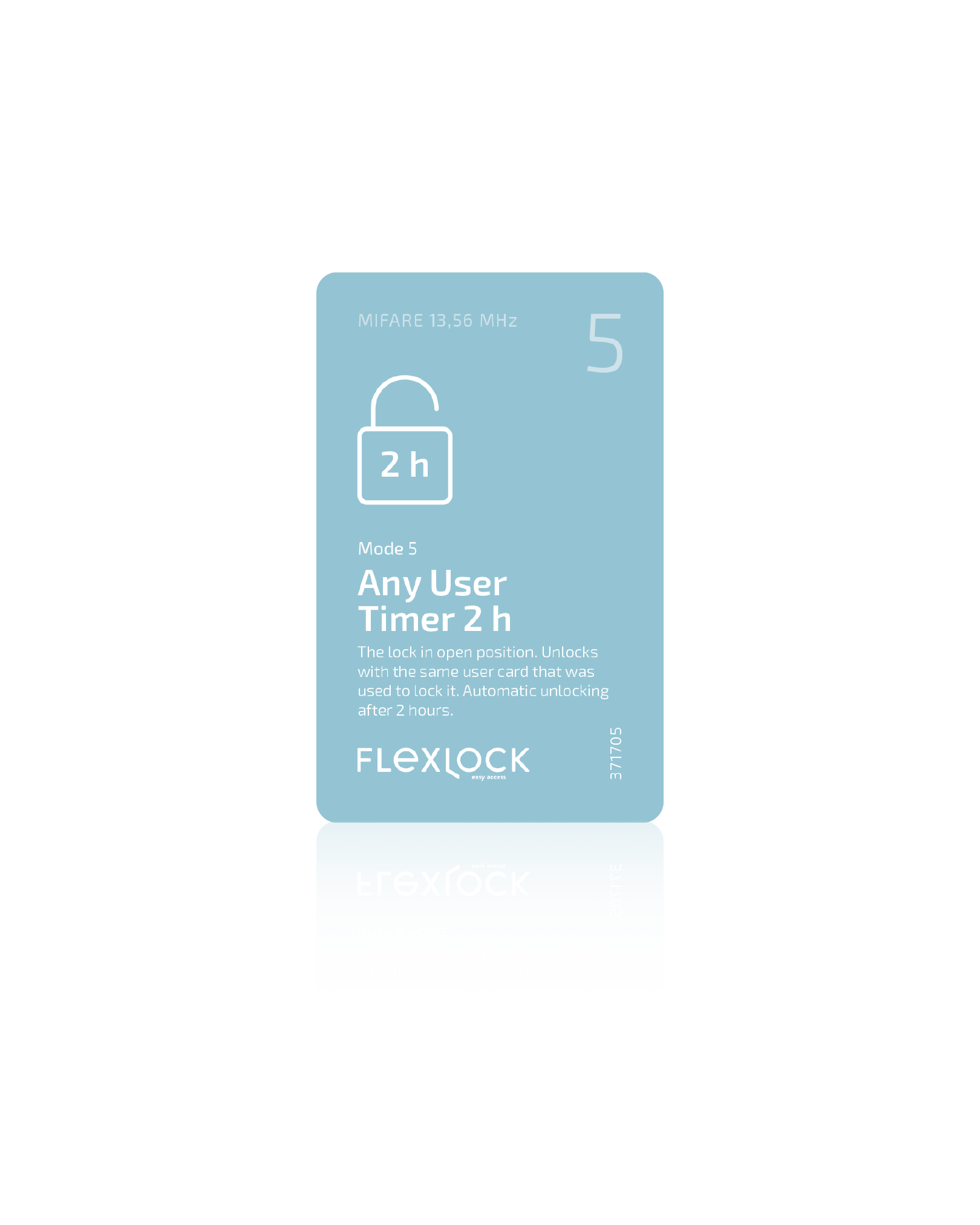

Mode 5Mode 5 - Any user Timer 2 h. This function is intended for public storage where the lock is in the open position by default. The storage can be used by anyone who has a temporary need for it. The user card that is presented first becomes the owner of the storage until the same card is used again to unlock it. The lock has a time limit and will automatically unlock after 2 hours. Available for both EM and Mifare.

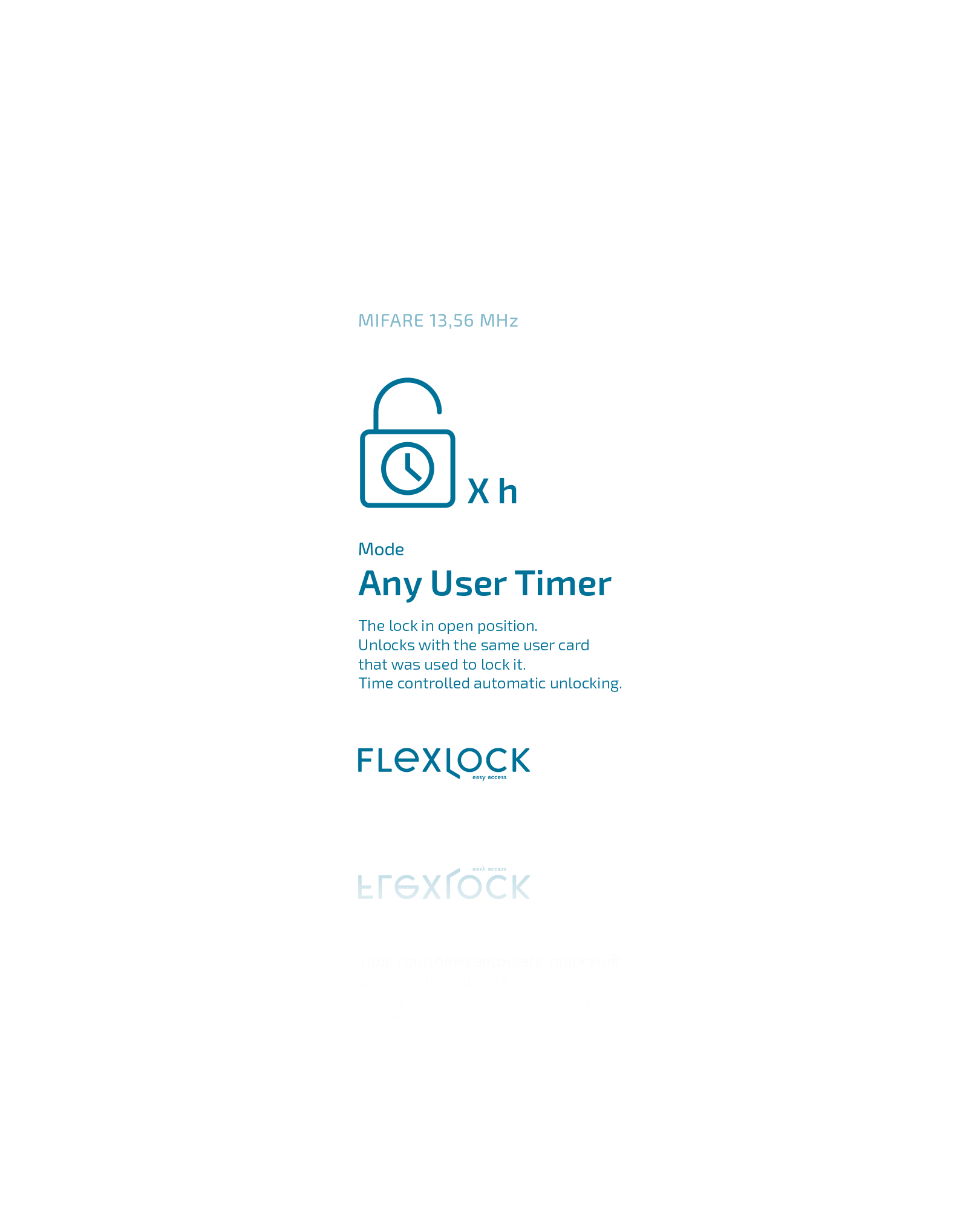

Any user TimerAny User Timer with a selectable time limit. Intended for public storage where the lock is in the open position by default. The storage can be used by anyone who has a temporary need for it. The user card that is presented first becomes the owner of the storage until the same card is used again to unlock it. The lock has a time limit and will automatically unlock after 1–166 hours. Specify the desired time when placing your order. Available only for Mifare.

Sound on/offThe Sound On/Off function card activates or deactivates an audible signal on your lock each time it is opened or closed. It is specifically designed for very noisy environments to make locking and unlocking easier to manage and more noticeable. Available for both EM and Mifare.

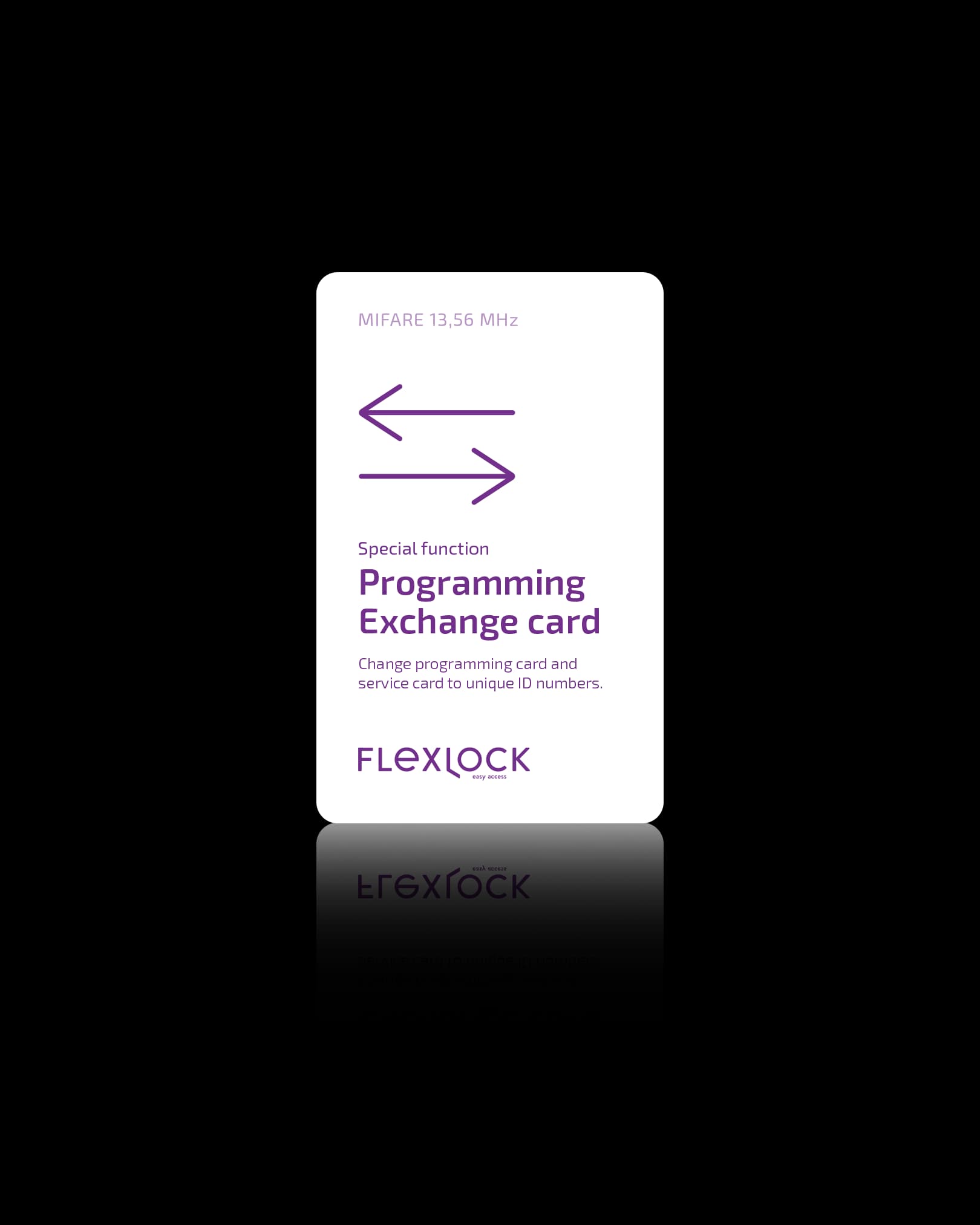

Programming ExchangeThe Programming Exchange function card is used to replace the existing Programming Card and Service Card with unique ID numbers. It is compatible only with Flexlock 2.0. Available for both EM and Mifare.

Ready to useThe Ready to Use function card sets the lock to an open position. The first user card presented to the lock will automatically be paired with it and registered as its owner as a unique user. This is particularly useful when installing a large number of locks at once, as it removes the need to manually program users into each individual lock. Available for both EM and Mifare.

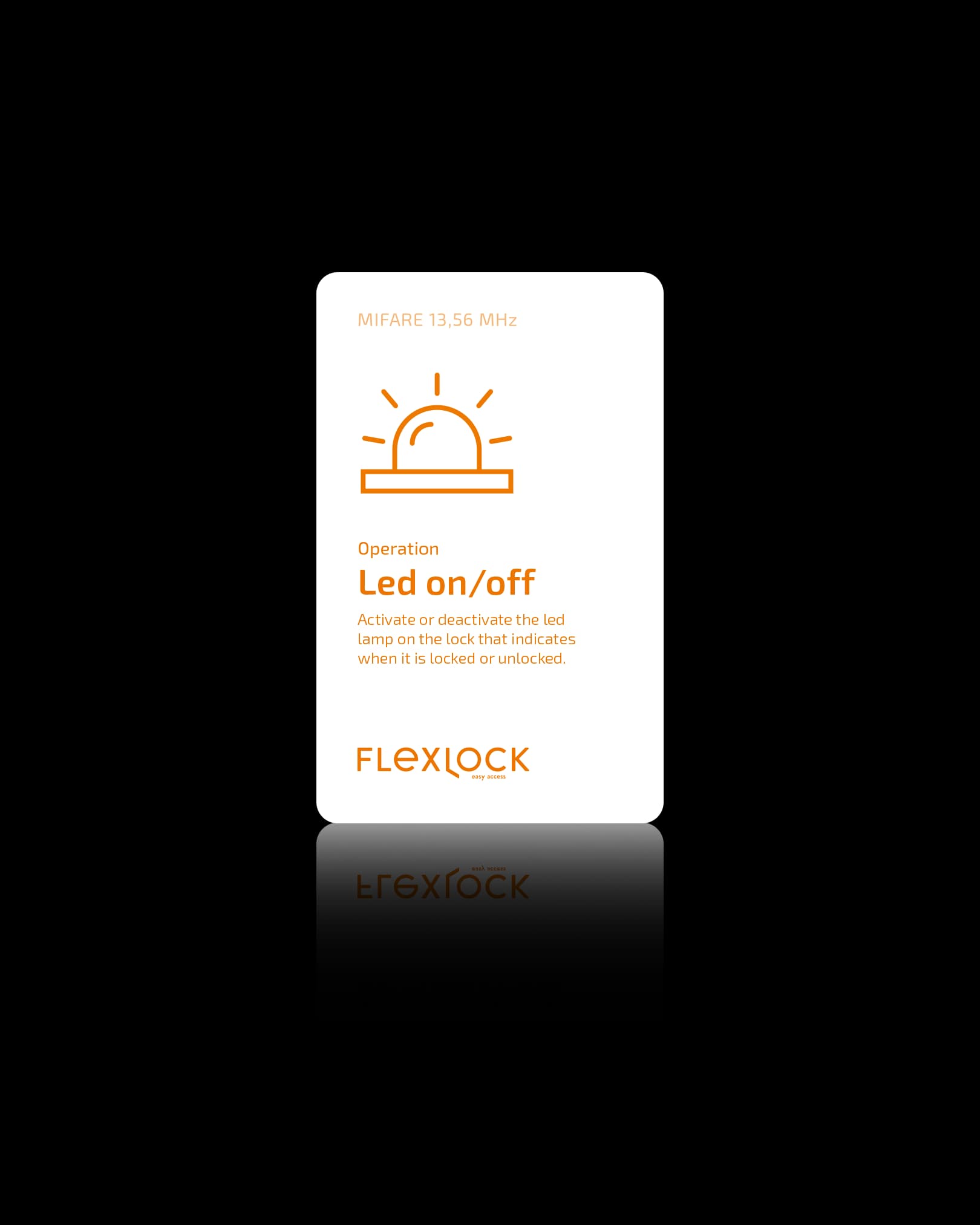

LED on/offThe LED On/Off function card activates or deactivates the LED on your lock, which indicates when the storage unit is available. On the Visible and Public models, the LED is activated by default. If you want LED functionality on a lock mounted on the inside, the lock must be an Invisible LED model, where the included light guide is drilled through the front panel. Particularly suitable for lock plates with a push‑pull function. Available only for Mifare 2.0.

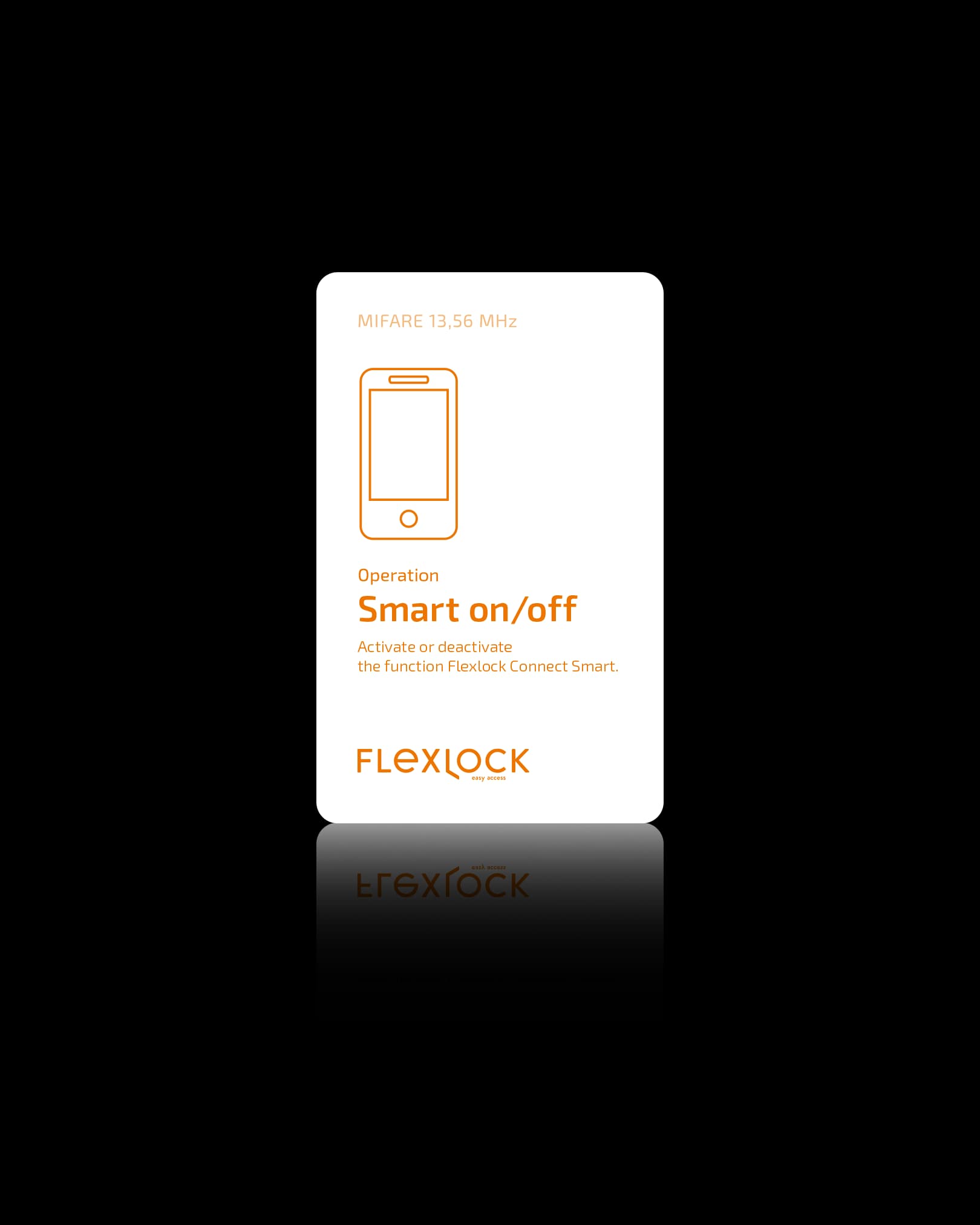

Smart on/offThe Smart On/Off function card activates or deactivates the Smart features on your lock. With the Smart system, you can use your mobile phone, card, or tag as a key. It offers cloud based central administration via computer, enabling the management of many locks across multiple locations. Available only for Mifare.

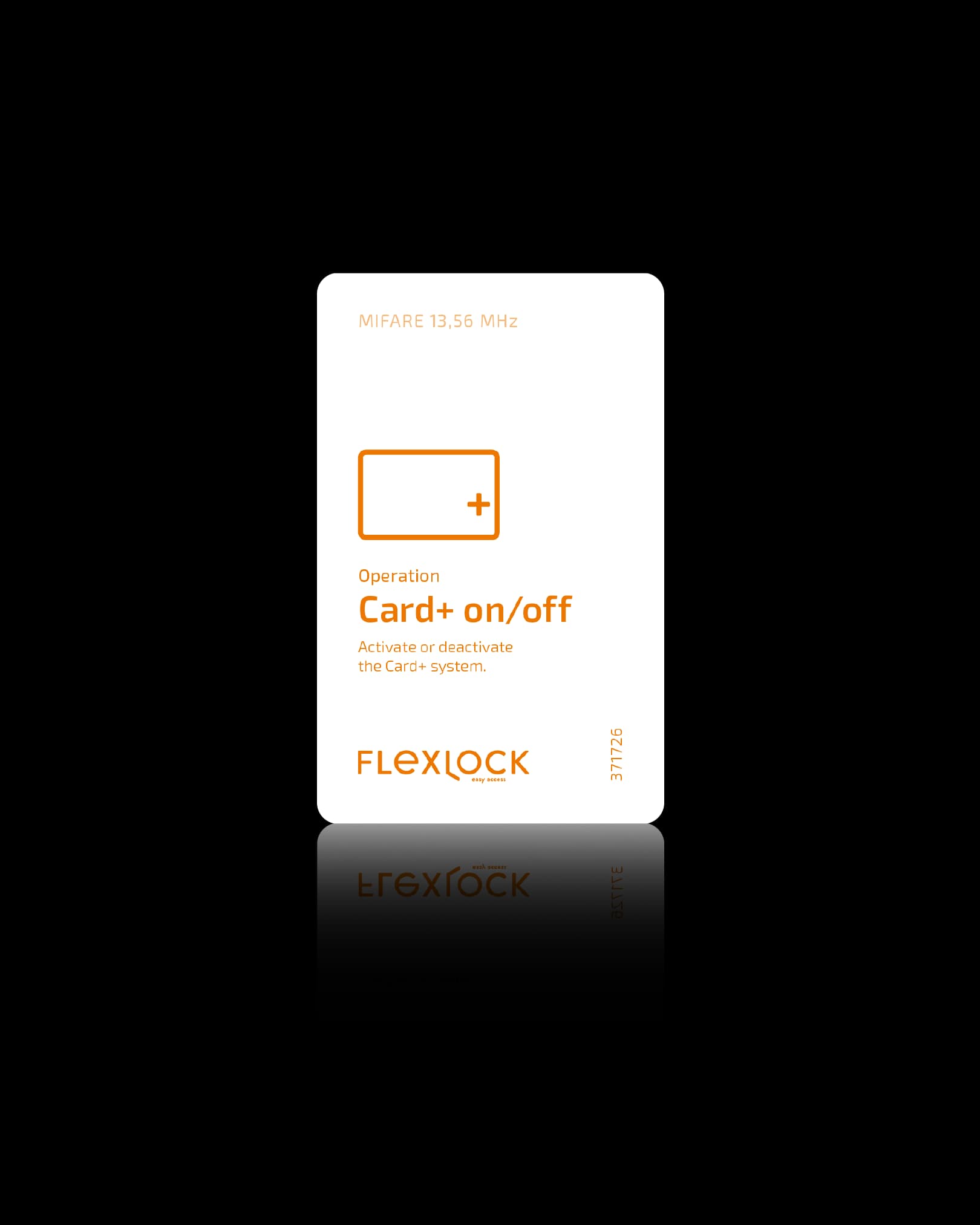

Card+ on/offThe Card+ On/Off function card activates or deactivates the Card+ features on your lock. With the Card+ system, you have the same functions as with the standard system ”Card”, but in addition to using a card or tag as a key, you also gain access to the locks through our Card+ app. Simply scan the QR code on the locker to access the storage. No cloud solutions or license fees are required. Administration is carried out locally at each individual lock using a programming card. Available only for Mifare.

Mobile OnlyThe Mobile Only function card activates or deactivates mobile access for the Card+ system. When this feature is activated, access to the locks is available exclusively via a mobile phone and the Card+ app. Available only for Mifare.

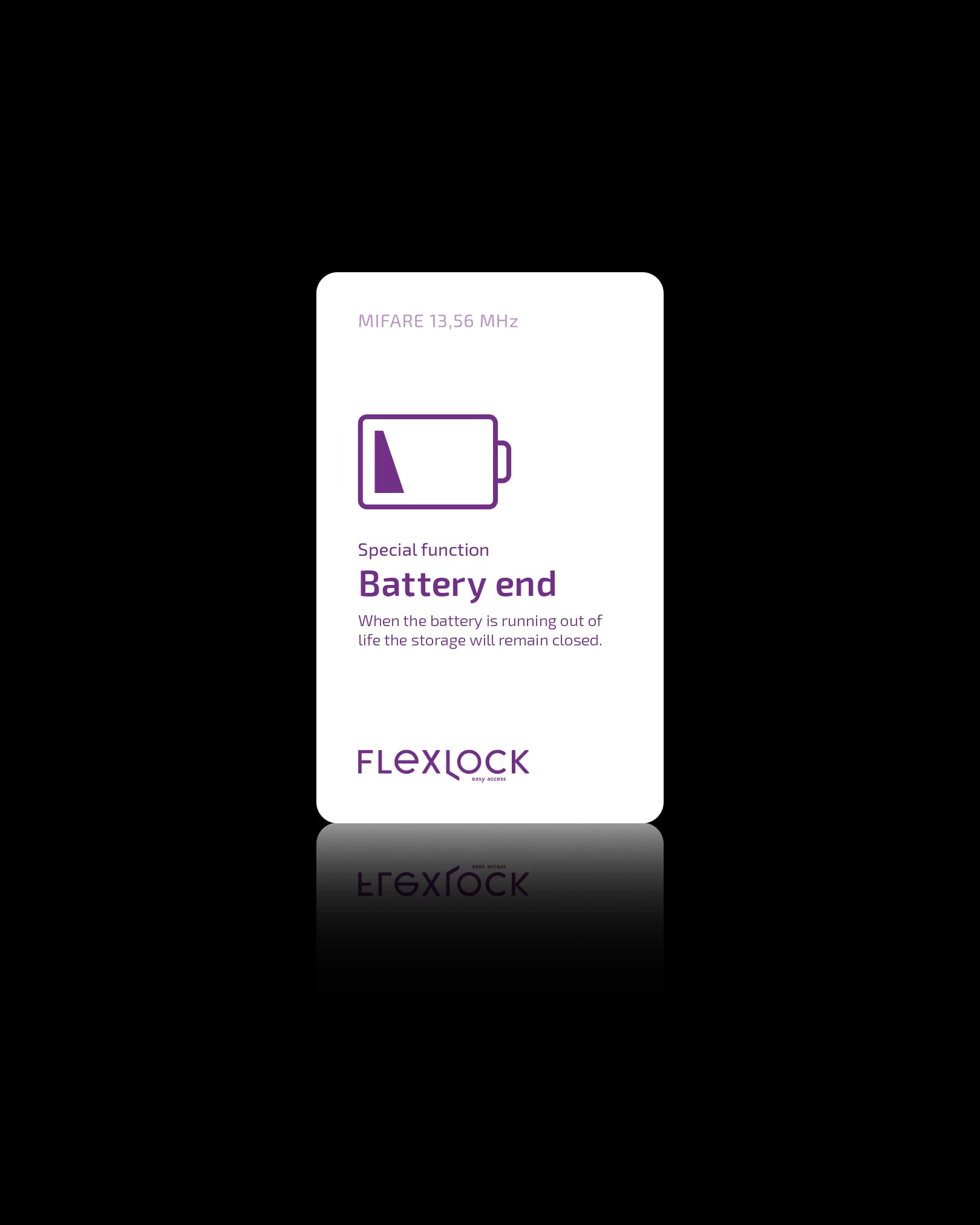

Battery EndThe Battery End function card activates or deactivates the automatic locking feature when the battery is depleted. When the feature is activated, the lock will instead open when the battery runs out. It can also be purchased as a complete kit together with a power bank and connection cable for the Visible or Public models.
