Aero Meeting
Art. nr.: A2CK53213A14Aero Meeting is a height-adjustable frame for conference tables, designed to create an ergonomic and flexible working environment. The frames encourages and facilitates variation between sitting and standing around the meeting table.
Color

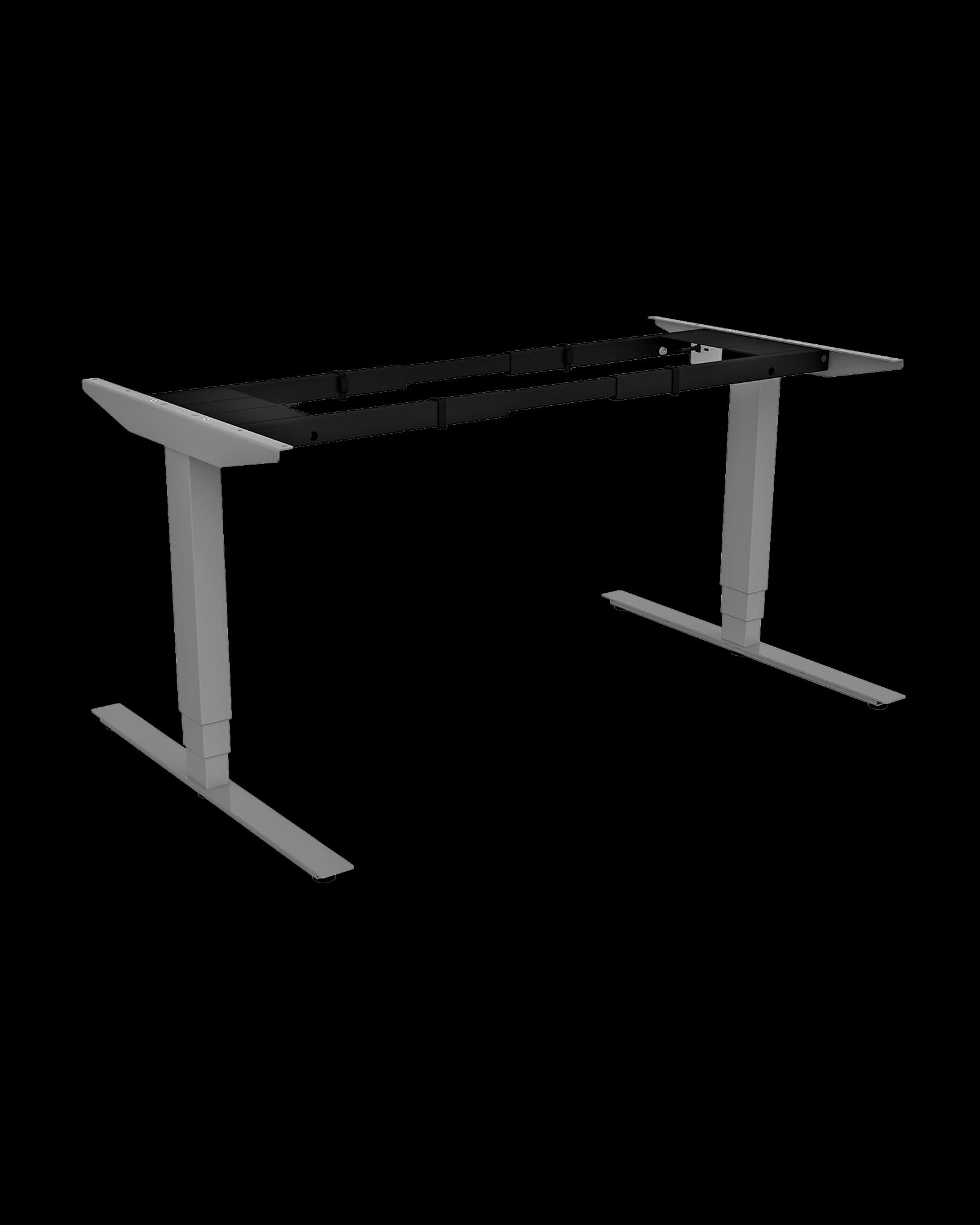

Silver

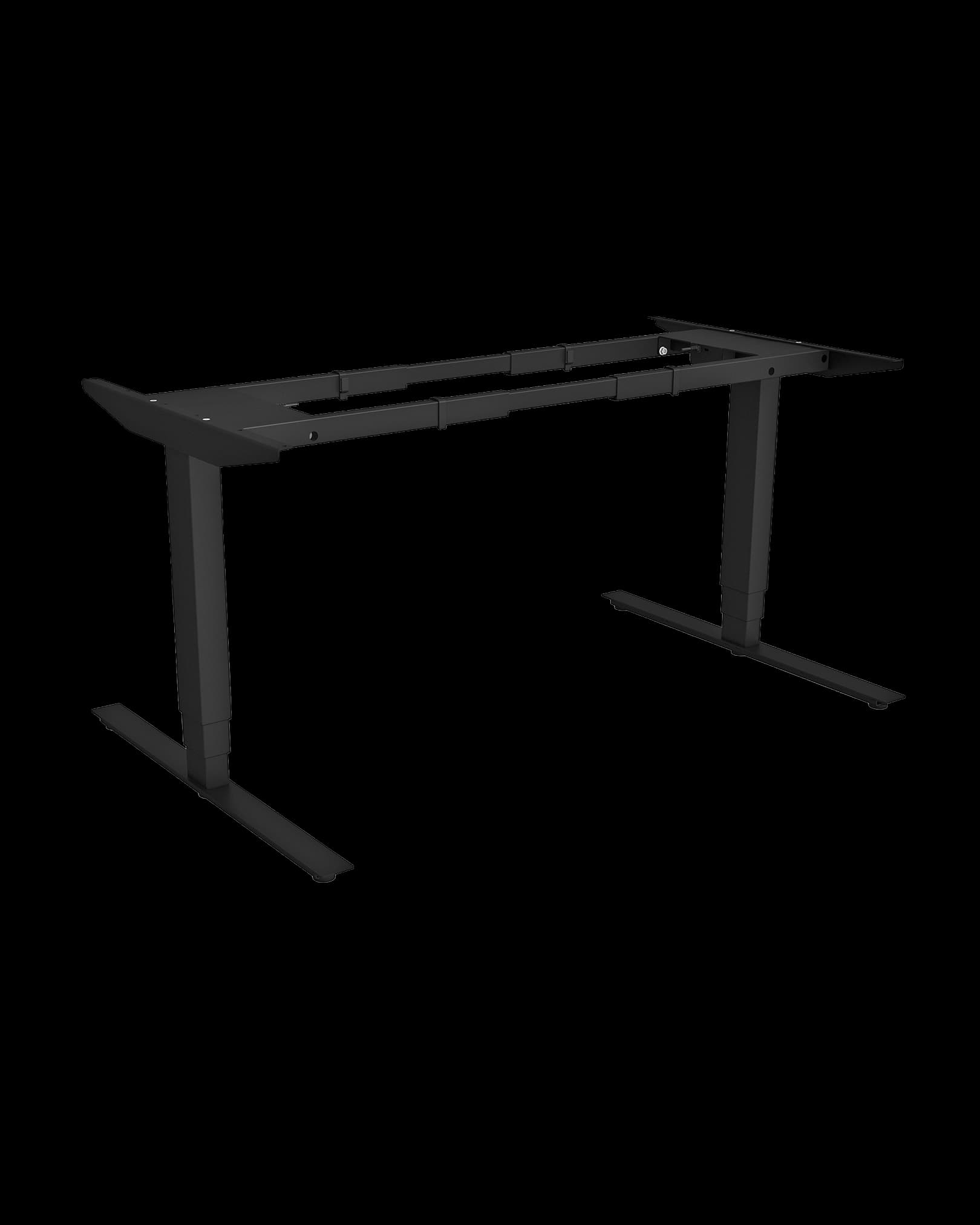

Black

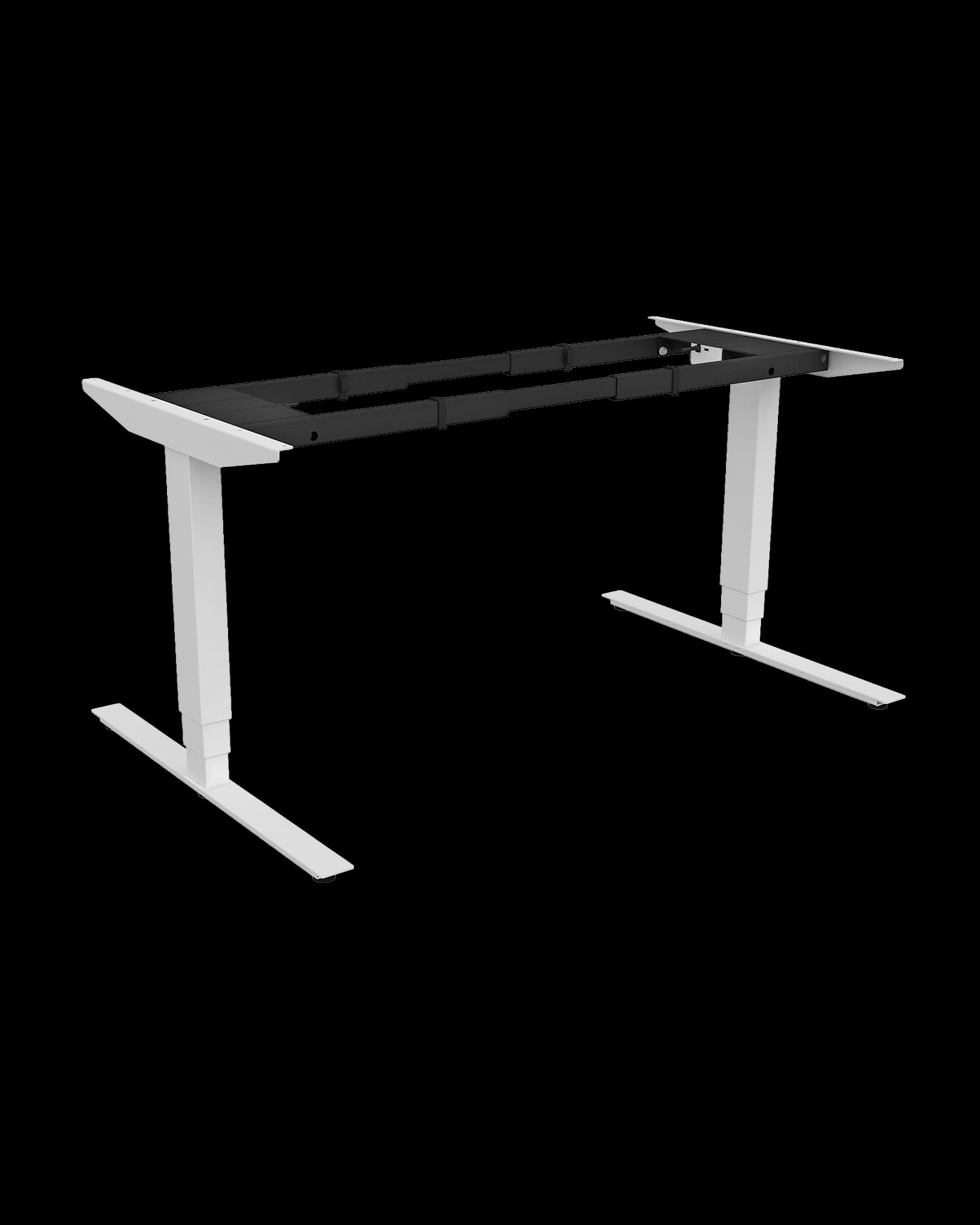

White
Dimensions
Aero A-2
Aero A-3

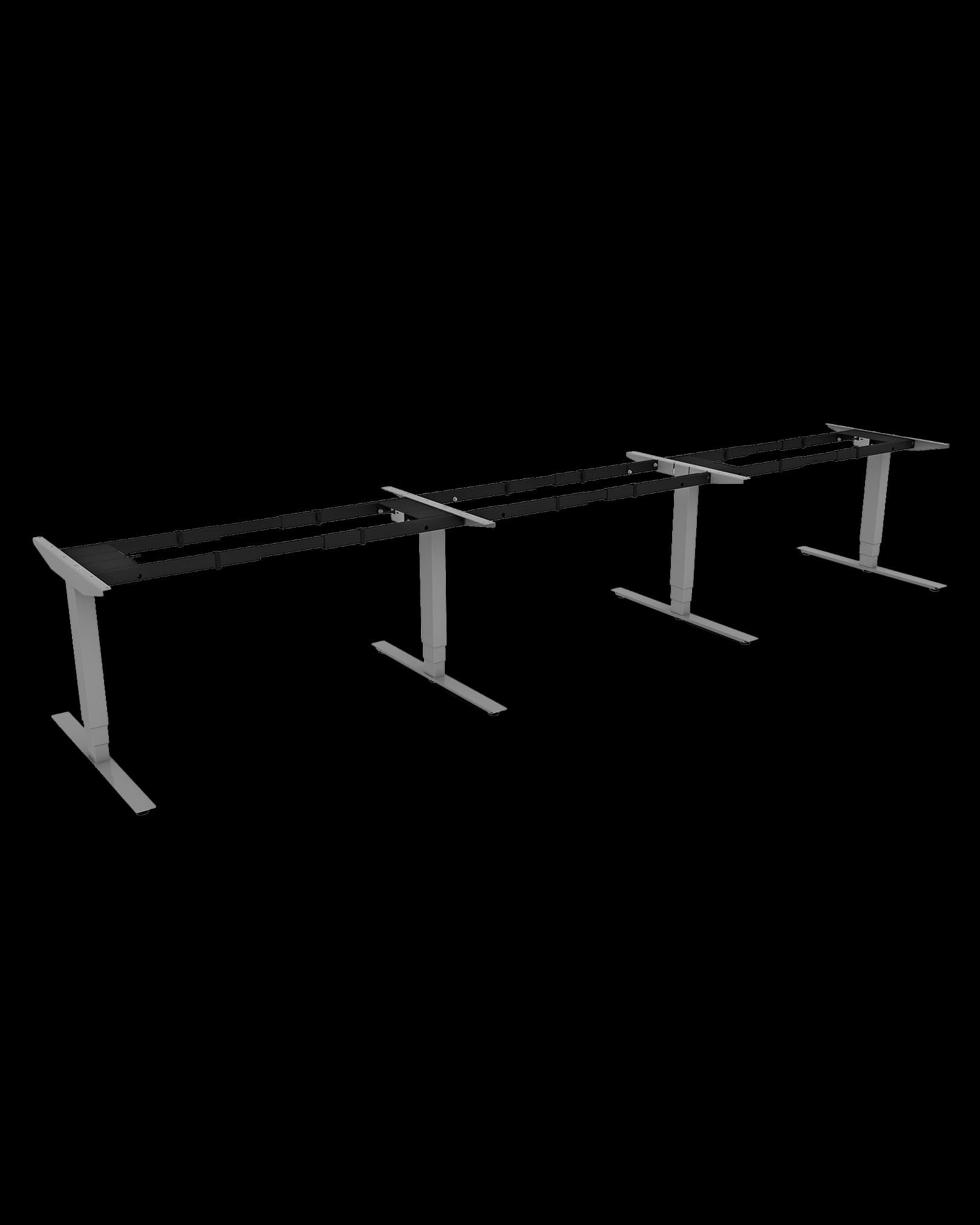

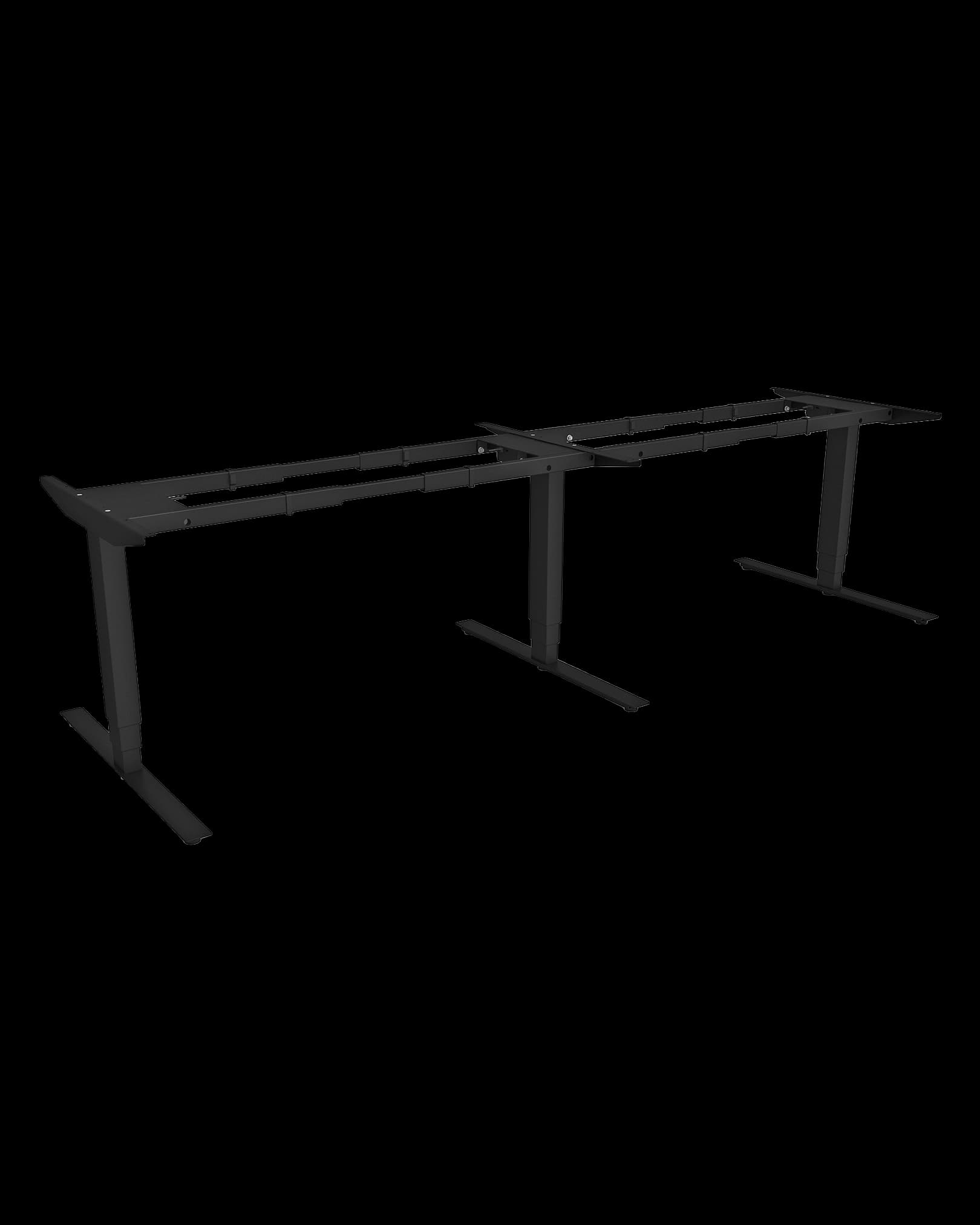

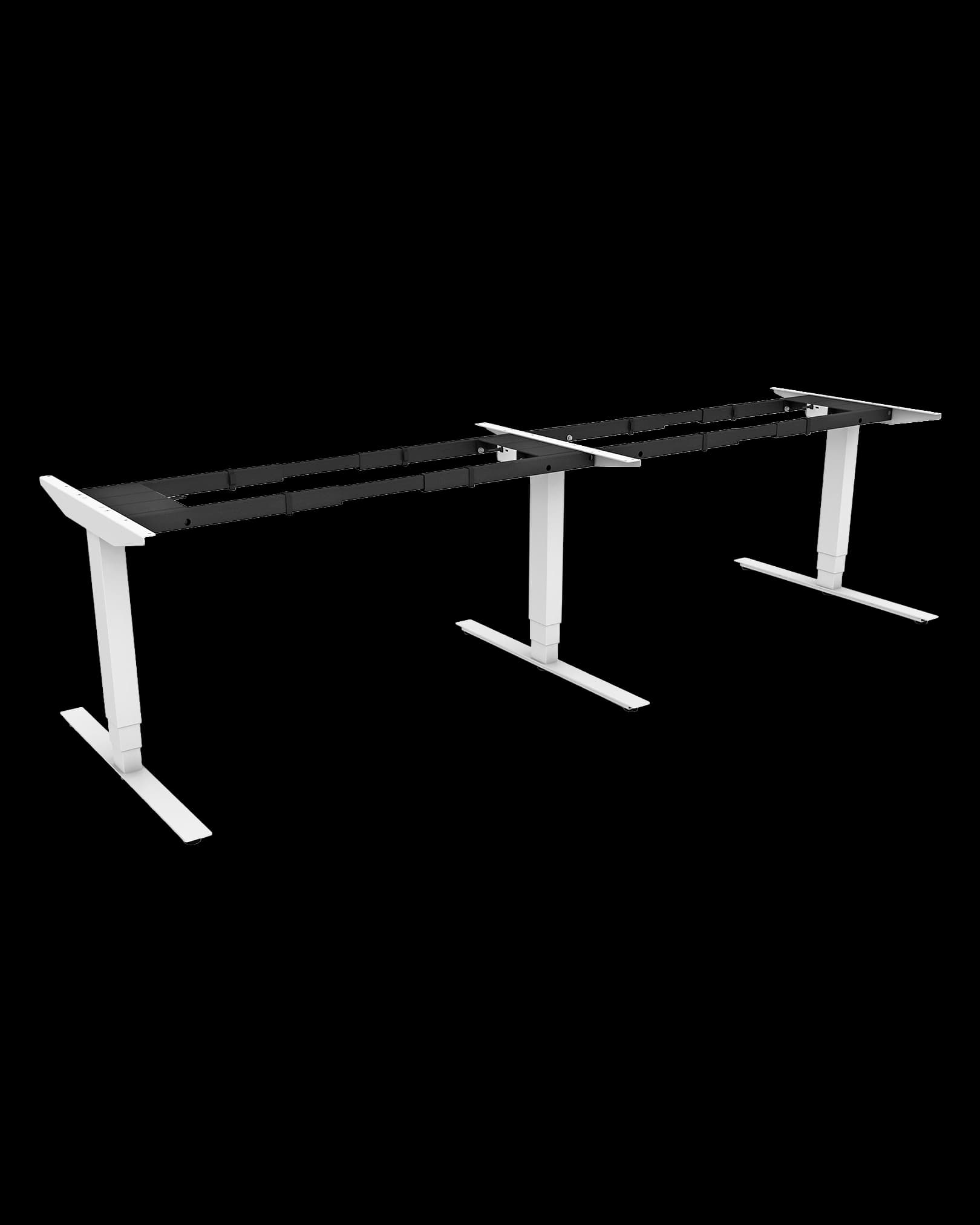

Aero A-4
liftCapacity
Max 150 kg (A-3)
Max 200 kg (A-4)

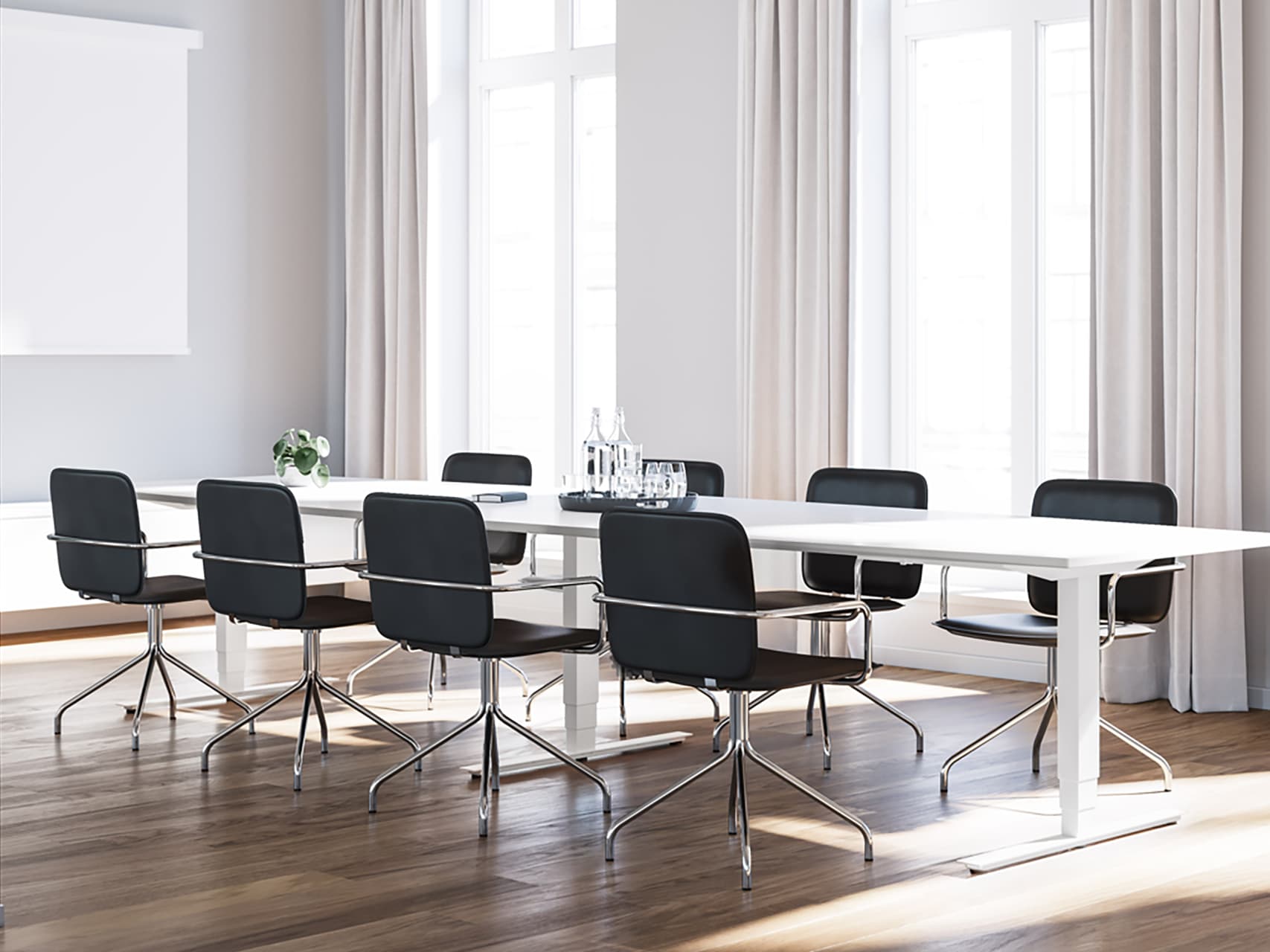

Aero Meeting is electric frames for conference tables with continuous height adjustment, making it easy to create an ergonomic workspace for small or large meetings. Available in several sizes, it allows you to easily design a conference table tailored to your organization’s specific needs. The flexible construction with adjustable frame lengths enables easy adaptation to a your chocie of tabletops. Aero features a stylish Scandinavian design with three-part rectangular tubes. The downward-moving leg profile creates a modern and visually light expression, with strong attention to design and detail. Freestanding legs provide optimal freedom of movement with unrestricted legroom. Built on the latest technology in height adjustment control to ensure reliable and comfortable operation.
Specifications
adjustableHeightYes
poweredByElectricity
stroke660 mm (605-1265 mm ± 5 mm)
liftCapacityMax 100 kg (A-2), Max 150 kg (A-3), Max 200 kg (A-4)
speed40 mm/sec
standbyPower0,1 W
noiseLevel≤ 42 dB(A)
frameDimensionsB1150-1740 x D890 mm (A-2), B2290-3490 x D890 mm (A-3), B2290-3490 x D890 mm (A-4)
tabletopDimensionsB1160-2250 x D900-1200 mm (A-2), B2300-3990 x D900-1200 mm (A-3), B2300-3990 x D900-1200 mm (A-4)
intermittentOperation10%, 1 min/9 min pause. Max 2 min/18 min.
areaOfUseIndoor
controlUnitFunctionsOverload protection, Temperature protection, S-Touch (integrated sensor), SSP (Swedstyle System Protection)
lifetimeMin 10 000 cycles
weight36, 5 kg (A-2), 59 kg (A-3), 83, 6 kg (A-4), 83, 6 kg (A-4), 83,6 kg (A-4)
certificationsComplianceCE, EN 15372:2016
weightWithoutPackaging35, 4 kg (A-2), 56, 8 kg (A-3), 56, 8 kg (A-3), 81, 4 kg (A-4), 81, 4 kg (A-4), 81,4 kg (A-4)
packingMethodSingle-piece carton, Bulk
cartonSizeB800 x D240 x H165 mm, (x2 A-3), (x2 A-4)
unitsPerPallet15
fullPalletHeight640 mm (A-2), 1280 mm (A-3), 1280 mm (A-4)
standardColorsSilver, Black, White
countryOfOriginSweden
guarantee5 year
